3RV20214DA10 -

Motor protection switch SIRIUS 3RV2 690 VAC 20...25 A IP 20, 3RV20214DA10, Siemens

Siemens 3RV20214DA10
声明：图片仅供参考，请以实物为准！
制造商：
Siemens Siemens
制造商产品编号：
3RV20214DA10
仓库库存编号：
136-23-100
技术数据表：
View 3RV20214DA10 Datasheet Datasheet
订购热线： 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大，部分产品信息可能未能及时更新，下单前请与销售人员确认好实时在库数量，谢谢合作！

3RV20214DA10技术参数

Rated operating voltage 690 VAC
Overload release 20...25 A
Protection rating IP 20

3RV20214DA10产品信息

Operating temperature -20...+60 °C
Dimensions W x H x D 45 x 97 x 91 mm
Breaking capacity 55 kA
Phase failure sensitivity Yes
Temperature compensation Ja
Rated frequency 50...60 Hz
Tripping class Class 10 to IEC 60947-4-1
Utilisation category AC 3
电话:400-900-3095
QQ:800152669

3RV20214DA10Family Information

  • Motor starter protector up to 36 Amp.
  • Current-limiting

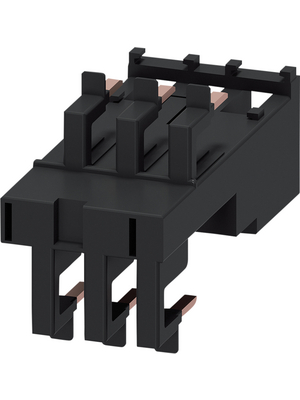

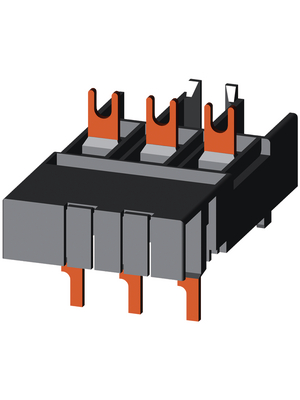

  • Motor protection switches 3RV2 and power contactors 3RT2 could be combined by using a connection adapter

3RV20214DA10产地与重量

Country of origin Germany (DE)
Manufacturer Siemens
Gross weight (incl. package) 365.0 Gram
Dimensions (incl. package) 105 x 105 x 50 MM
Customs number 8536201090
UNSPSC (v5.03) 30211931
EAN 4011209712546
