AL2-14MR-D -

Alpha XL base unit ALPHA, 8 D/AI, 6 RO, AL2-14MR-D, Mitsubishi Electric

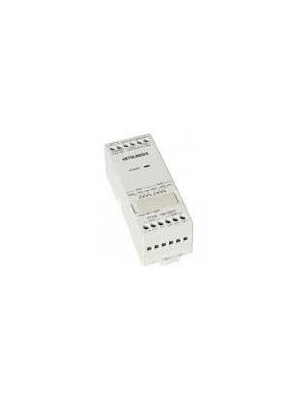

Mitsubishi Electric AL2-14MR-D
声明:图片仅供参考,请以实物为准!
制造商产品编号:
AL2-14MR-D
仓库库存编号:
125-71-174
技术数据表:
View AL2-14MR-D Datasheet Datasheet
订购热线: 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大,部分产品信息可能未能及时更新,下单前请与销售人员确认好实时在库数量,谢谢合作!

AL2-14MR-D技术参数

Inputs 8 digital (useable by analogue)
Outputs 6 relay
Operating voltage 24 VDC
Operating temperature -25...+55 °C

AL2-14MR-D产品信息

Series ALPHA
No. of digital inputs 8
No. of digital inputs, usable by analogue 8
No. of analogue inputs 0
No. of high speed counter 0
No. of relay outputs 6
No. of SSR outputs 0
No. of transistor outputs 0
No. of analogue outputs 0
No. of impulse outputs 0
Switching capacity 6 x 8 A
Protection rating IP 20
Dimensions W x H x D 124.4 x 90 x 52 mm
Inputs/outputs, max. 18 I/Os

AL2-14MR-D配套产品

  • 参考图片
  • 制造商 / 说明 / 型号 / 仓库库存编号
  • PDF
  • 缓存库存数
  • 操作

AL2-14MR-D您可能还对以下元器件感兴趣

  • 参考图片
  • 制造商 / 说明 / 型号 / 仓库库存编号
  • PDF
  • 缓存库存数
  • 操作
Related Categories: PLCs | Motion & Drives | Stepper Motors & Servo Drives | HMI & Accessories | Fibre Optic Components
Related Products: PROFIBUS FC Standard Cable GP | Logic module LOGO!8 12/24RCE, 8 DI, 4 AI, 4 RO | Programming cable Programming cable | Supply Module N/A | End Module N/A
Related Manufacturers: Siemens | Eaton | Wago | Trinamic | Schneider Electric

AL2-14MR-D缓存库存及参考价格

24 有货

可于1-2周内送达
购买
日本5号仓库直销,订单金额100元起订,满300元含运,满500元含税运,有单就有优惠,量大更优惠,支持原厂订货
CNY 1840.62
数量 价格
1 +  ¥1840.62
5 +  ¥1760.6
电话:400-900-3095
QQ:800152669在线咨询

AL2-14MR-DFamily Information

  • An ALPHA instead of many components the intelligent ALPHA control relay is the contact and cost-effective solution for small control tasks
  • Combines all of the advantages of an SPS system in a very compact housing and lowers the acquisition, programming, wiring and assembly costs
  • Applications in handicrafts, house/building technology, machine/control cabinet building. For example: Pumps, presses, heating, air-conditioning, ventilation, lighting, roller shutters, doors/gates, model making, alarm systems etc.
  • Multiple functions such as timer, counter, boolean operations, 2-point control, freely-configurable blocks, e.g. for mathematical calculations, convenient calendar/clock function, serial interface etc
  • Programming directly on the unit via a display with 8 function keys and HMI functionality or fast, graphic programming on a PC without previous knowledge even with off-line simulation
  • Second serial interface for AL2-14/24MR for (GSM-) modem coupling, SMS transfer and connection to a PC, PID controller, temperature/voltage transformer, DCF77 radio clock signal evaluation, gain function, integrated Schmitt trigger controller etc.
  • AL2-14/24MR expandable with 1 expansion module by up to 4 inputs/outputs
  • Three-level password protection prevents unauthorized access
  • High operating and reading comfort: Illuminated display with 8 function keys and HMI functionality
  • Powerful software for Windows: 6-language example programs
  • 3 assembly possibilities: DIN rails, direct assembly or on the housing

AL2-14MR-D产地与重量

Country of origin Japan (JP)
Manufacturer Mitsubishi Electric
Gross weight (incl. package) 359.0 Gram
Dimensions (incl. package) 140 x 115 x 76 MM
Customs number 8537109899
UNSPSC (v5.03) 43171810
