1-1954289-3 -

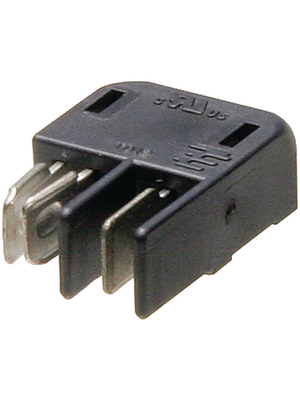

Hermaphroditic connector 6P, 1-1954289-3, TE Connectivity

TE Connectivity 1-1954289-3
声明:图片仅供参考,请以实物为准!
制造商产品编号:
1-1954289-3
仓库库存编号:
143-87-045
技术数据表:
View 1-1954289-3 Datasheet Datasheet
订购热线: 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大,部分产品信息可能未能及时更新,下单前请与销售人员确认好实时在库数量,谢谢合作!

1-1954289-3技术参数

Pitch 4 mm
Poles 6
Series Hermaphroditic Connectors
Contact material Tin-plated brass
Gender of contacts Hermaphroditic

1-1954289-3产品信息

Connection principle Board-Board
Housing Material Liquid-crystal polymer (LCP)
Rated current 5 A
Rated voltage 125 VAC/DC
Colour black
Combustibility class UL 94 V-0
Temperature range -40...+105 °C
Related Categories: Industrial Connectors | Board & Flat Cable Connectors | Relays | D-Sub Connectors | Circular Connectors
Related Products: Crimp socket Female 30...22 AWG | Crimp contact Female 22...18 AWG | Crimp socket Female 24...20 AWG | Crimp socket 3 A Female 26...22 AWG | PCB pin header Pitch2 mm Poles 2 Single row / straight / with shroud PH
Related Manufacturers: Molex | Binder | Amphenol | Omron Electronic Components | Würth Elektronik
电话:400-900-3095
QQ:800152669

1-1954289-3Family Information

  • Hermaphroditic connector system for LED lighting controls etc.
  • Wire-to-board and board-to-board applications
  • With or without positive latching
  • Housing and connector with latch are to be combined for wire-to-board applications
  • Housings must be equipped with both crimp pins and crimp sockets

1-1954289-3产地与重量

Country of origin United States (US)
Manufacturer TE Connectivity
Gross weight (incl. package) 1.95 Gram
Dimensions (incl. package) 44 x 15 x 4 MM
Customs number 8536693000
UNSPSC (v5.03) 30211816
