PSW 80-27 -

Laboratory Power Supply 1 Ch. 0...80 VDC 27 A, Programmable, PSW 80-27, GW Instek

GW Instek PSW 80-27
声明:图片仅供参考,请以实物为准!
制造商产品编号:
PSW 80-27
仓库库存编号:
110-31-091
技术数据表:
View PSW 80-27 Datasheet Datasheet
订购热线: 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大,部分产品信息可能未能及时更新,下单前请与销售人员确认好实时在库数量,谢谢合作!

PSW 80-27技术参数

Outputs 1
Power 720 W
Output voltage 1 max. 80 VDC
Output current 1 max. 27 A

PSW 80-27产品信息

Programmable Programmable
Interfaces USB
LAN
Plug version CH
F (CEE 7/4)
C14
Resolution, voltage 1 mV
Resolution, current 2 mA
Residual ripple 11 mVrms
Length 350 mm
Input voltage 100...240 VAC
Dimensions L x W x H 350 x 142.5 x 124 mm
Weight 5 kg

PSW 80-27配套产品

  • 参考图片
  • 制造商 / 说明 / 型号 / 仓库库存编号
  • PDF
  • 操作
电话:400-900-3095
QQ:800152669

PSW 80-27Family Information

  • Voltage Rating: 30/80V/160V, Output Power: 360W ~ 1080W
  • Constant Power Output for Multiple Range (V&I) Operation
  • CV/CC Priority; Particularly Suitable for the Battery and LED Industry
  • Adjustable Slew Rate
  • Series and Parallel Operation (2 units in Series / 3 units in Parallel Maximum)
  • High Efficiency and High Power Density
  • 1/6 Rack Mount Size Design (EIA/JIS Standard)

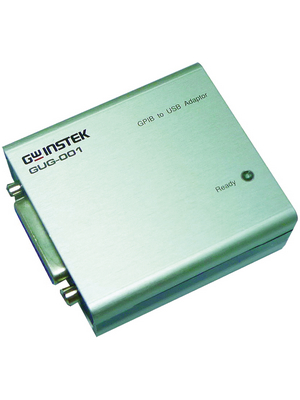

  • Standard Interface: LAN, USB, Analogue Control Interface, GPIB-USB Adaptor(Optional)
  • Labview Driver

PSW 80-27产地与重量

Country of origin Taiwan (TW)
Manufacturer GW Instek
Gross weight (incl. package) 1500.0 Gram
Dimensions (incl. package) 490 x 270 x 230 MM
Customs number 8504408290
UNSPSC (v5.03) 30211502
