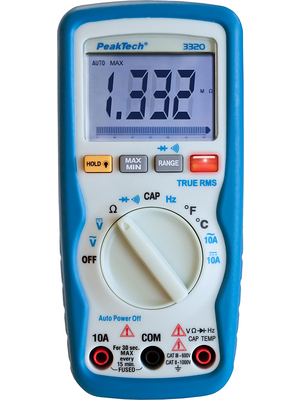

110-95-111,Multimeter digital TRMS AC 6000 digits 1000 VAC 1000 VDC 10 ADC, PEAKTECH 3320-DISCONT., PeakTech
| Type of measurement | TRMS AC |
| Display | 6000 digits |
| Bandwidth VAC | 0.06 kHz |
| Bandwidth AAC | 0.06 kHz |
| Safety to EN61010 | CAT III 600 V |
| VAC max. | 1000 VAC |
| VAC resolution | 100 μV |
| VDC max. | 1000 VDC |
| VDC resolution | 1000 μV |
| ADC max. | 10 ADC |
| ADC resolution | 1 μA |
| AAC max. | 10 AAC |
| AAC resolution | 1000 μA |
| Ohm max. | 60 MOhm |
| Ohm resolution | 0.1 Ohm |
| F max. | 4000 μF |
| F resolution | 0.1 nF |
| Hz max. | 10000 Hz |
| Hz resolution | 0.001 Hz |
| Sensor type/thermocouples | K |
| °C measurement range | -20...760 °C |
| °C resolution | 1 °C |
| Measuring function |
Continuity tester
Diode tester Hold Relative mode |
| Instrument functions |
Analogue bargraph
Backlight Integrated holster Non-contact voltage detection Range selection, automatic |
| Output connector | Banana sockets, 4 mm |
| Electrical supply | 1 x 6LR61/9V |
| Guarantee | 3 years |
| Dimensions L x W x H | 150 x 70 x 48 mm |
| Weight | 260 g |
| Design | Handheld |
| Protection rating | IP 40 |
| Delivery with |
Battery
Carrying case Manual Temperature probe Test lead |
