UB800-18GM40-I-V1 -

Ultrasonic sensor, UB800-18GM40-I-V1, Pepperl+Fuchs

Pepperl+Fuchs UB800-18GM40-I-V1
声明：图片仅供参考，请以实物为准！
制造商产品编号：
UB800-18GM40-I-V1
仓库库存编号：
137-60-765
技术数据表：
View UB800-18GM40-I-V1 Datasheet Datasheet
订购热线： 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大，部分产品信息可能未能及时更新，下单前请与销售人员确认好实时在库数量，谢谢合作！

UB800-18GM40-I-V1技术参数

Acquisition range 50...800 mm
Acquisition range max. 800 mm
Acquisition range min. 50 mm
Output 4...20 mA
Connection Plug M12
Operating voltage 10...30 VDC
Operating temperature -25...+70 °C

UB800-18GM40-I-V1产品信息

Protection rating IP 65
Dimensions M18 x 40 mm
Thread length 40 mm
Recording angle 5 °@ -3 dB
Description 4-pole
电话:400-900-3095
QQ:800152669

UB800-18GM40-I-V1Family Information

Series Description
  • Ranges up to 1000 mm
  • Very small blind range
  • Measuring range can be freely pogrammed via programmer input
  • Low overall length, only 40 mm or 75 mm
  • Switching output PNP (E5) for switching point (NC/NO) or window operation, short-circuit and overload-proof
  • Analog output (U or I) 0...10 V or 4...20 mA, adjustable climbing/falling ramp, measuring window can be set within any part of the recording range of the sensor
  • Temperature compensation
  • LEDs for output state (yellow) and fault (red)
  • Connection: M12 plug, 4-pin (...-V1) or 5-pin (...-V15)

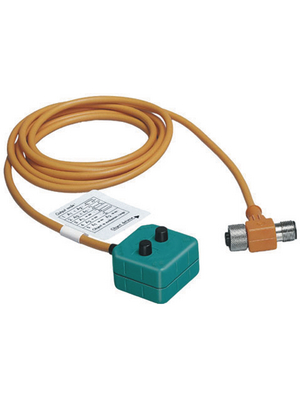

  • Programming device UB-PROG2 obtainable as accessory

UB800-18GM40-I-V1产地与重量

Country of origin Germany (DE)
Manufacturer Pepperl+Fuchs
Gross weight (incl. package) 55.0 Gram
Dimensions (incl. package) 95 x 30 x 30 MM
Customs number 9031808000
UNSPSC (v5.03) 30211910
