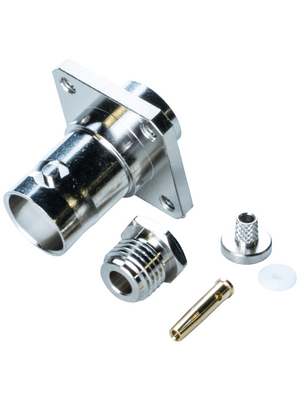

300-61-805,Connector BNC 50 Ohm, straight, RND 205-00464, RND Connect
Datasheet
| Series | BNC |
| Impedance | 50 Ohm |
| Center contact | Female |
| Frequency | 4 GHz |
| Housing Material |
Brass (CuZn)
Nickel-plated |
| Insulation material | Teflon |
| Mounting | Panel mount |
| Connector Design | straight |
| Contacts |
Brass
gold-plated |
| Connection, attachment |
Crimp
1.8 mm |
| Connection, shield | Clamp |
| Cable type | RG-174U |
| Rated Voltage | 500 V |
| Max. temperature | +165 °C |
| Cable preparation | A:9 B:4 C:4 |
| Temperature range | -65...+165 °C |
