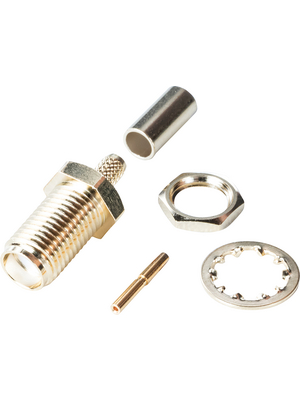

300-61-835,Connector SMA 50 Ohm, straight, RND 205-00494, RND Connect
Datasheet
| Series | SMA |
| Impedance | 50 Ohm |
| Center contact | Female |
| Frequency | 6 GHz |
| Housing Material |
Brass (CuZn)
Gold-plated |
| Insulation material | Teflon |
| Mounting | Panel mount |
| Connector Design | straight |
| Contacts |
Beryllium Copper
gold-plated |
| Connection, attachment | Solder |
| Connection, shield |
Crimp
3.5 mm |
| Cable type | RG-174U |
| Rated Voltage | 335 V |
| Max. temperature | +165 °C |
| Cable preparation | A:9.9 B:2.5 C:5 |
| Temperature range | -65...+165 °C |
