300-35-806,Current clamp meter, 300 AAC, 300 ADC, TRMS AC, PeakTech 3131eff +CAL, PeakTech
Datasheet
| Type of measurement | TRMS AC |
| AAC max. | 300 AAC |
| ADC max. | 300 ADC |
| VAC max. | 600 VAC |
| VDC max. | 600 VDC |
| Calibration | Calibration |
| Max. conductor ? | 22 mm |
| Digits | 4000 |
| Ohm max. | 40 MOhm |
| AAC resolution | 10000 μA |
| ADC resolution | 10000 μA |
| Safety to EN61010 | CAT II 1000 V |
| Bandwidth AAC | 1 kHz |
| Bandwidth VAC | 0.5 kHz |
| Instrument functions | Backlight |
| Measuring function |
Continuity tester
Diode tester Hold Relative mode |
| VAC resolution | 100 μV |
| VDC resolution | 100 μV |
| Ohm resolution | 0.1 Ohm |
| Output connector | Banana sockets, 4 mm |
| Protection rating | IP 65 |
| Dimensions L x W x H | 192 x 66 x 27 mm |
| Weight | 200 g |
| Electrical supply | 2 x LR6/AA |
| Delivery with |
Battery

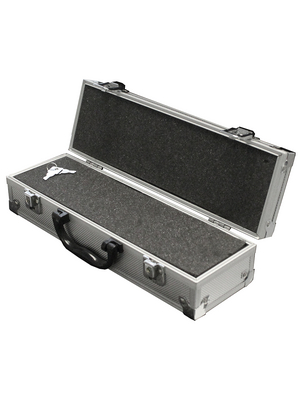

Carrying case Manual Test lead |
