300-44-752,Current clamp meter, 600 AAC, 600 ADC, TRMS, HIOKI CM 4371, Hioki
Datasheet
| Type of measurement | TRMS |
| AAC max. | 600 AAC |
| ADC max. | 600 ADC |
| VAC max. | 1000 VAC |
| VDC max. | 1500 VDC |
| Max. conductor ? | 33 mm |
| Digits | 9999 |
| Ohm max. | 600 kOhm |
| AAC resolution | 10 mA |
| ADC resolution | 10 mA |
| Safety to EN61010 |
CAT III 1000 V
CAT IV 600 V |
| F max. | 1000 μF |
| Hz max. | 999.9 Hz |
| W max. | 1020 kVA |
| °C measurement range | -40...+400 °C |
| Bandwidth AAC | 1 kHz |
| Bandwidth VAC | 1 kHz |
| Instrument functions |
Low-pass filter
Backlight Non-contact voltage detection |
| Measuring function |
Inrush
Min./max. value Hold Continuity tester Diode tester |
| VAC resolution | 1 mV |
| VDC resolution | 0.1 mV |
| Ohm resolution | 0.1 Ohm |
| F resolution | 0.001 μF |
| Hz resolution | 0.001 Hz |
| W resolution | 0.001 VA |
| °C resolution | 0.1 °C |
| Accuracy, power | ±2.0% rdg.±20 dgt |
| Protection rating | IP 50 |
| Dimensions L x W x H | 215 x 65 x 35 mm |
| Weight | 340 g |

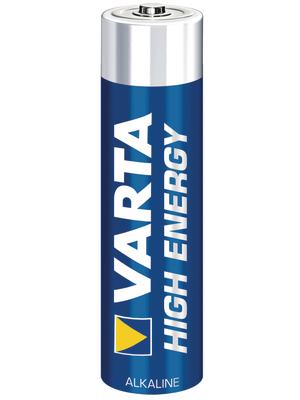

| Electrical supply | 2 x LR03/AAA |
| Delivery with |
Battery
Carrying case Manual Test lead |
