300-17-273,Current clamp meter, 600 A, TRMS AC, AMP-310-EUR, Amprobe
Datasheet
| Type of measurement | TRMS AC |
| AAC max. | 600 A |
| VAC max. | 600 V |
| VDC max. | 600 V |
| Max. conductor ? | 30 mm |
| Digits | 6000 |
| Ohm max. | 0.06 MOhm |
| AAC resolution | 10000 μA |
| Safety to EN61010 | CAT III 600 V |
| F max. | 2500 μF |
| Hz max. | 0.999 Hz |
| °C measurement range | -40...400 °C |
| Bandwidth AAC | 0.4 kHz |
| Bandwidth VAC | 0.06 kHz |
| Instrument functions |
Battery Operation
Backlight Non-contact voltage detection Integrated holster Low-pass filter |
| Measuring function |
Auto Hold
Continuity tester Diode tester Min./max. value Relative mode |
| Sensor type/thermocouples | K |
| °C resolution | 1 °C |
| Dimensions L x W x H | 219 x 77 x 37 mm |
| Weight | 208 g |
| Electrical supply | 2 x LR03/AAA |

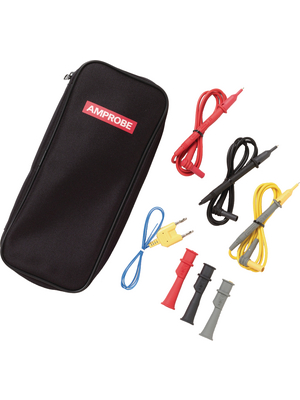

| Delivery with |
Current Clamp
Battery Carrying case Manual Test lead Crocodile clip |
