148-45-574,Female header Spring Clamp Terminals 2P, FK-MC 0,5/ 2-ST-2,5, Phoenix Contact
Datasheet
| Pitch | 2.5 mm |
| Poles | 2 |
| Gender of contacts | Female |
| Connection direction | straight |
| Termination type | Spring Clamp Terminals |
| Rated voltage to EN | 125 VAC/DC |
| Rated current to EN | 4 A |
| Cross-section max. | 0.5 mm2 |
| Cross-section min. | 0.14 mm2 |
| Manufacturer Article n° | 1881325 |
| Rated voltage to UL | 125 VAC/DC |
| Rated current to UL | 4 A |
| Connection cross-section | 0.14 ... 0.5 mm2 solid or stranded |
| Housing Material | Polyamide (PA/Nylon) |
![Phoenix Contact - MC 0,5/ 2-G-2,5 - Pin header 90° Solder Pin [PCB, Through-Hole] 2P, MC 0,5/ 2-G-2,5, Phoenix Contact](http://www.delphi-connect.com/pic/19/191153.jpg)

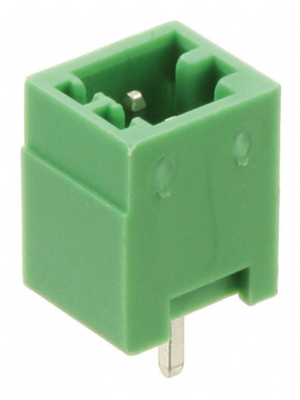

![Phoenix Contact - MCV 0,5/ 2-G-2,5 - Pin header straight Solder Pin [PCB, Through-Hole] 2P, MCV 0,5/ 2-G-2,5, Phoenix Contact](http://www.delphi-connect.com/pic/19/191175.jpg)
