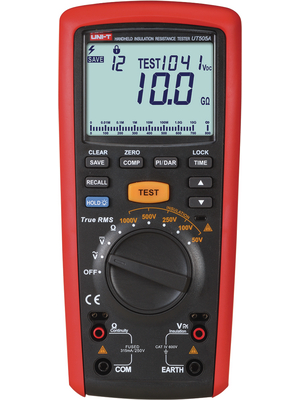

300-59-464,Insulation tester 20 GOhm 50 V / 100 V / 250 V / 500 V / 1000 V 600 VAC, UT505A, UNI-T
Datasheet
| Insulation, max. | 20 GOhm |
| Insulation min. | 0.01 MOhm |
| Test voltage |
100 V
1000 V 250 V 50 V 500 V |
| VAC max. | 600 VAC |
| VDC max. | 600 VDC |
| R low | 0.01Ohm~20.00KOhm |
| Display |
6000 digits
Analog bargraph + LCD Backlit |
| Short-circuit current | <2 mA |
| Safety to EN61010 |
CAT IV 600 V
CAT III 1000 V |
| Dimensions L x W x H | 225 x 103 x 59 mm |
| Weight | 630 g |
| Electrical supply | 6 x LR6/AA |
