U1732C -

LCR Meter 20 MOhm 20 mF 2000 H, U1732C, Keysight

Keysight U1732C
声明：图片仅供参考，请以实物为准！
制造商产品编号：
U1732C
仓库库存编号：
176-52-632
技术数据表：
View U1732C Datasheet Datasheet
订购热线： 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大，部分产品信息可能未能及时更新，下单前请与销售人员确认好实时在库数量，谢谢合作！

U1732C技术参数

Ohm max. 20 MOhm
F max. 20 mF
H max. 2000 H

U1732C产品信息

Ohm resolution 0.1 mOhm
F resolution 0.001 pF
H resolution 0.001 μH
Dissipation factor D min. 0.001
Dissipation factor D max. 999
Quality factor Q min. 0.001
Quality factor Q max. 999
Measurement frequency fix 100 Hz
fix 120 Hz
fix 1 kHz
fix 10 kHz
Measuring function |Z|
L
C
R
D
Q
θ
ESR
Description LCR Meter
Series U1730 Series
Display LCD, 20 000 digits
Electrical supply 1 x 6LR61/9V
Weight 337 g
Dimensions L x W x H 184 x 87 x 41 mm
Delivery with Battery
Calibration certificate
Crocodile clip
Printed Quick Start Guide
电话:400-900-3095
QQ:800152669

U1732CFamily Information

  • Handheld LCR meter with dual display showing measurements for inductance, capacitance, resistance as well as min/max/average recordings and relative mode simultaneously displaying DCR, ESR, dissipation factor(D), quality factor(Q) or phase angle(φ)

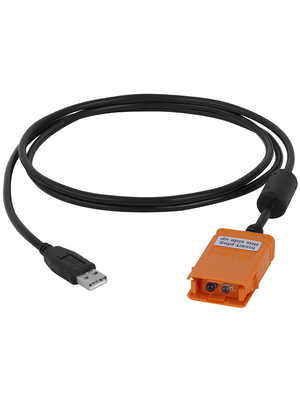

  • Can be connected to a PC for data logging with IR/USB cable U5481A
  • Wide LCR ranges with 2 to 4 selectable test frequencies
  • Auto calculations of phase angle (U1732/3A), dissipation factor and Q-factor

U1732C产地与重量

Country of origin Malaysia (MY)
Manufacturer Keysight
Gross weight (incl. package) 544.0 Gram
Dimensions (incl. package) 220 x 120 x 65 MM
Customs number 9030310090
UNSPSC (v5.03) 41113630
