300-11-580,Multimeter benchtop 1000 VDC 10 ADC, UT803CE, UNI-T
Datasheet
| Digits | 6000 |
| VAC max. | 1000 VAC |
| VDC max. | 1000 VDC |
| ADC max. | 10 ADC |
| AAC max. | 10 AAC |
| Ohm max. | 60 MOhm |
| Safety to EN61010 |
CAT I 1000 V
CAT II 600 V |
| Hz max. | 60 MHz |
| °C measurement range | -40...+1000 °C |
| F max. | 6 mF |
| Measuring function |
Continuity tester
Diode tester Hold Min./max. value Peak Hold Relative mode Transistor tester |
| Instrument functions | Backlight |
| Interfaces |
RS232
USB |
| Measuring error, DC volt | ±0.3% +2 |
| Measuring error, AC volt | ±0.6 % +5 |
| Measuring error, DC ampere | ±0.5% +3 |
| Measuring error, AC ampere | ±1% +5 |
| Measuring error, resistance | ±0.5 % +2 |
| Electrical supply |
230 V @ 50 Hz

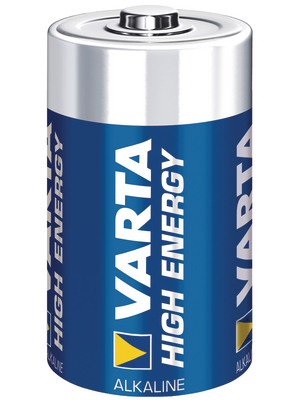

6 x LR14/C |
| Dimensions L x W x H | 310 x 240 x 105 mm |
| Weight | 2.4 kg |
| Design | Bench |
| Delivery with |
Crocodile clip
Muli-Purpose Socket Power cable Software Temperature probe Test lead USB cable |
