H11L2M -

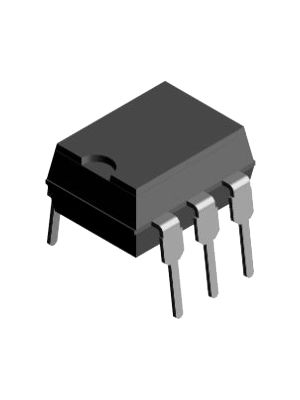

Optocoupler 1 MBit/s DIL-6, H11L2M, Fairchild

Fairchild H11L2M
声明：图片仅供参考，请以实物为准！
制造商产品编号：
H11L2M
仓库库存编号：
175-20-415
技术数据表：
View H11L2M Datasheet Datasheet
订购热线： 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于产品数据库庞大，部分产品信息可能未能及时更新，下单前请与销售人员确认好实时在库数量，谢谢合作！

H11L2M技术参数

Channels 1
Data throughput 1 MBit/s
Power supply 3...16 V
Collector-emitter breakdown voltage 16 V
Package DIL-6

H11L2M产品信息

Approvals UL
CSA
VDE
SEMKO
NEMKO
DEMKO
FIMKO
Operating temperature -40...+85 °C
Description Schmitt trigger Output
Insulation voltage 3500 Vrms
Propagation delay time 2.5 μs
Related Manufacturers: Texas Instruments | NXP | ST | IR | Diotec
Related Products: Fork coupler 3 mm 50 mA 30 V 30 mA -20...+70 °C | Optocoupler DIL-6 | Optocoupler (TRIAC) 600 V 100 mA 10 mA 7500 V rms DIL-6 | Optocoupler SO-4 | Optocoupler (TRIAC) 400 V 100 mA 15 mA 1600 V rms DIL-6
Related Categories: Transistors - MOSFETs | Logic | Diodes | Optocouplers | Transistors
电话:400-900-3095
QQ:800152669

H11L2MFamily Information

  • Direct connection with logic circuits and use as logical gate are possible
  • Specially suited in applications in μP systems for the insulation
  • Three state types: With "Enable" connection
  • Current loop types: Emitting and receiving components for the data transfer with rates up to 20 kbit at a cable length of 400 m
  • Threshold value switch For the control of DC or AC voltage levels, with hysteresis and overvoltage protection. Adjustment of the switch threshholds via series resistor

H11L2M产地与重量

Country of origin Taiwan (TW)
Manufacturer Fairchild
Gross weight (incl. package) 1.0 Gram
Dimensions (incl. package) 10 x 10 x 5 MM
Customs number 8541409090
UNSPSC (v5.03) 32111705
