300-26-475,Oscilloscope 4x350 MHz 2 GS/s, WAVESURFER 3034,FREE EMB,FG & AUTO, Teledyne LeCroy
Datasheet
| Series | WaveSurfer |
| Channel analog | 4 |
| Bandwidth | 350 MHz |
| Sample rate, single-shot | 2 GS/s |
| Memory | 10000 kpts/ch |
| Display |
10.4" TFT-LCD
Colour Touchscreen |
| Trigger |
Auto
Edge I2C (optional) Logic Normal Pulse width Rise/Fall Time RS-232/422/485/UART (optional) Runt Single SPI (optional) Stop TV |
| Sample rate, repetitive | 50 GS/s |
| Interfaces |
Ethernet (LAN)
USB Device (Control and Connect with a PC) USB host (Data Storage To USB Stick) VGA |
| Measuring function |
Automatic parameter measurement
Cursor measuring Duty cycle Min./max. value Segmented memory Serial Triggering and Analysis (optional) |
| Instrument functions |
Bandwidth upgradable
Bus decoding (optional) Easy Navigation and Automated Search of Waveform Data Function Generator (optional) Low-pass filter MSO (optional) Probe-Interface Remote display Zoom function |
| Rise time | 1 ns |
| Vertical sensitivity/div | 1 mV...10 V/div |
| Time basis | 2 ns...50 s/div |
| Vertical resolution | 8 Bit |
| Electrical supply | 100...240 V @ 50...60 Hz |
| Mathematical functions |
Add
Advanced Math Differentiate Divide FFT Integrate Multiply Subtract |
| Input coupling |
AC
DC GND |
| Input impedance Ohm |
50
Ohm
1 Ohm |
| Input: Impedance F | 16 pF |
| Dimensions L x W x H | 1450 x 350 x 220 mm |
| Weight | 4.81 kg |
| Guarantee | 3 years |
| Delivery with |

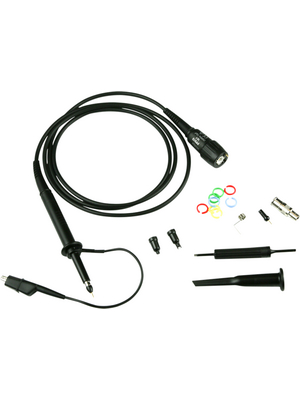

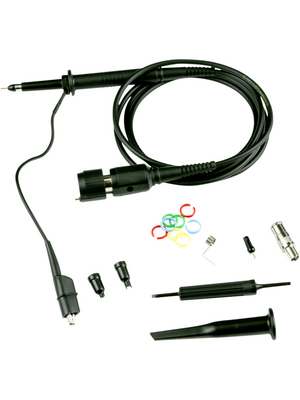

1 Probes/channel
Calibration certificate Memory card Protection Cap Power cable |
Including free WS3K-FG Function Generator Option, WS3K-AUTO CAN and LIN Trigger and Decode Option and WS3K-EMB I2C, SPI, UART and RS-232 Trigger and Decode Option
