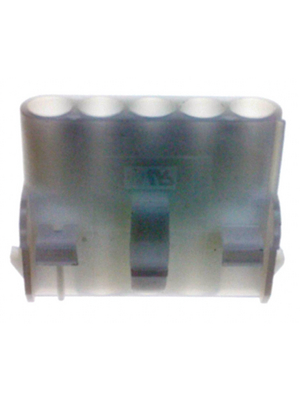

144-19-446,Pin header Pitch6.35 mm Poles 1 x 5 Single row MATE-N-LOK Universal, 640466-1, TE Connectivity
Datasheet
| Pitch | 6.35 mm |
| Poles | 1 x 5 |
| Series | MATE-N-LOK Universal |
| Gender of contacts | Male |
| Connector Termination | THT |
| Gender of housing | Female |
| Housing Material | Polyamide (PA 66) |
| Connector Design | Single row |
| Connection principle | Wire-Board |
| Contact material | Tin-plated phosphor bronze |
| Rated current | 19 A |
| Rated voltage | 600 VAC/DC |
| Test voltage | 5000 V |
| A | 33.02 mm |
| Insulation resistance | 1000 MOhm |
| Temperature range | -55...+85 °C |
| Combustibility class | UL 94 V-2 |
