6ES7215-1AG31-0XB0 -

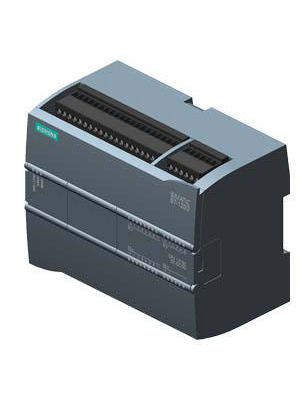

S7-1200 CPU 1215C SIMATIC S7-1200, 14 DI, 2 AI (0...10 VDC), 6 HS, 10 TO, 6ES7215-1AG31-0XB0, Siemens

声明：图片仅供参考，请以实物为准！

订购热线： 400-900-3095 0755-21000796, QQ:800152669, Email:sales@szcwdz.com

由于产品数据库庞大，部分产品信息可能未能及时更新，下单前请与销售人员确认好实时在库数量，谢谢合作！

Inputs	14 digital, 2 analogue (0...10 VDC), 6 high speed counter
Outputs	10 transistor, 4 impulse
Operating voltage	24 VDC
Operating temperature	-20...+60 °C

Series	SIMATIC S7-1200
No. of digital inputs	14
No. of digital inputs, usable by analogue	0
No. of analogue inputs	2
No. of high speed counter	6
No. of relay outputs	0
No. of SSR outputs	0
No. of transistor outputs	10
No. of analogue outputs	0
No. of impulse outputs	4
Switching capacity	0.5 A
Communications interface	RJ45 built-in, RS 232 and RS 485 optional
Processing time per binary statement	0.1 μs
Internal program memory	4 MB
Data memory	100 kByte
Data buffer	No time limit
Protection rating	IP 20
Analogue inputs	0...10 VDC
Load current	0.5 A
Real-time clock	Yes, with daylight saving time changeover
Dimensions W x H x D	130 x 100 x 75 mm
Inputs/outputs, max.	284 DI/DQ, 51 AI/AQ
Signal module max	8
Description	Transistor

Modular miniature controller from the SIMATIC S7 controller range
Controller with integrated PROFINET interface for communication between programming devices, HMI's or other SIMATIC controllers
Communication with external devices is still possible via the open industrial Ethernet standard PROFINET
Powerful integrated technology functions such as counting, measuring, PID controllers with auto-tune and motion control in accordance with PLCopen
Integrated digital and analogue inputs/outputs
Signal boards for internal controller extension, max. 1 signal board per controller
Signal modules for external controller extension by adding I/O channels
Communication modules for external controller expansion with communication interfaces
Extremely simple installation, programming and operation
Highly-integrated, space-saving, powerful
Suitable for small to medium-sized applications in automation engineering
Supported protocols: TCP/IP, ISO-on-TCP, USS drive protocol, Modbus Master/Slave
